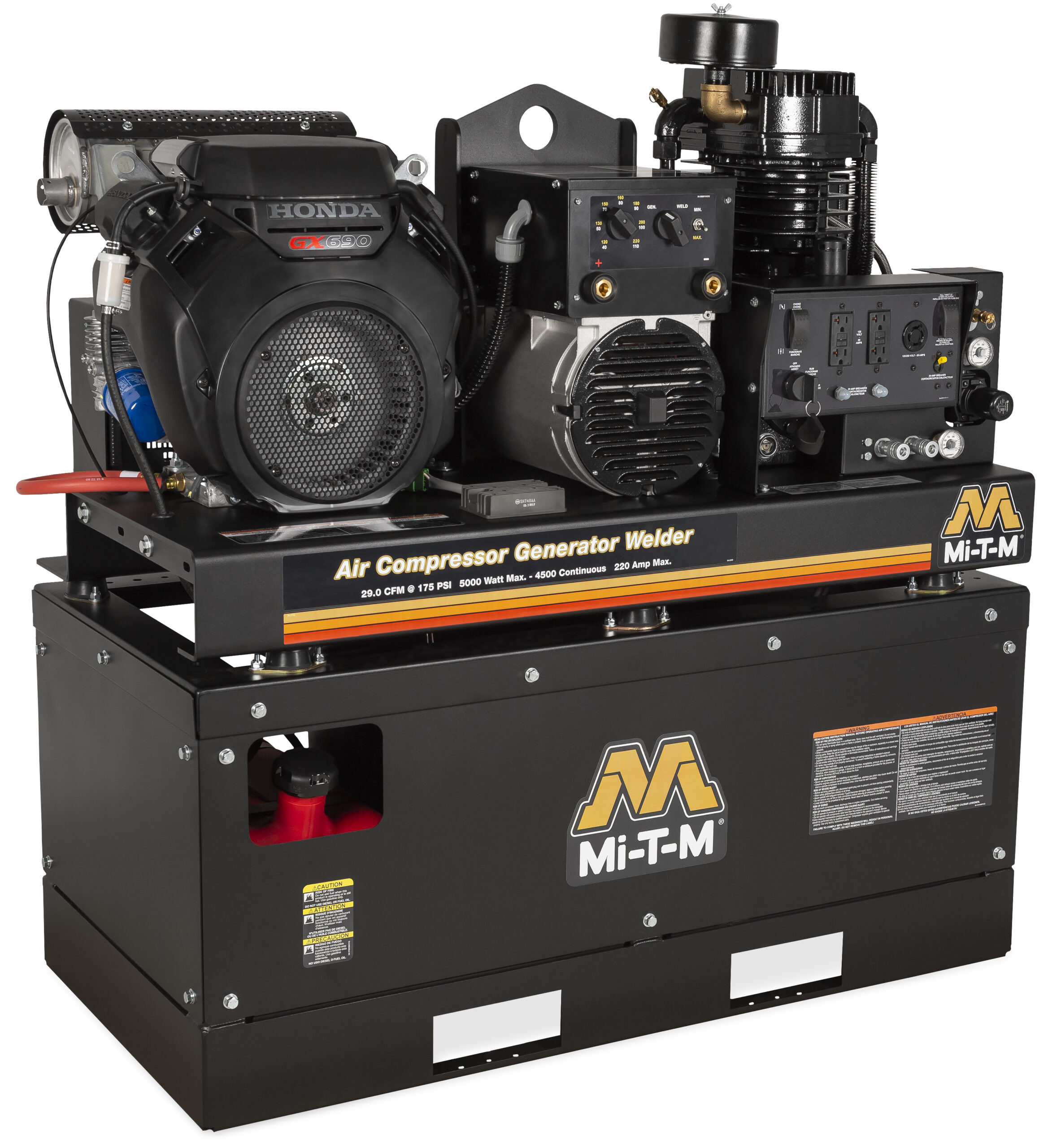

AGW-SH22-20M
This AGW Series combines an air compressor, generator, and welder into one machine, making it the complete on-site unit to efficiently tackle numerous jobs at once.
Compressor Pump:
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator:
Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder:
Amperage selection switch, 170A or 220A maximum
Frame:
Powder-coated ASME receiver tank · Powder-coated four-piece belt guard
Components:
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch flywheel
AGW Series Operation
Generator Mode:
AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode:
DC current only · Engine must be running full throttle · Selector switch must be set to full throttle
Note: All gasoline models sold in California are required to have a CARB-compliant engine. Consult factory.
All models sold in California are required to have the AX-0080 CARB-compliant fuel tank.
Equipped with 150-PSI maximum rated regulator.
